Hydraulic Lifting Systems
Hydraulic lifting systems are used to lift and position heavy loads in an efficient and safe manner.
Hydraulic lifting systems
Hydraulic lifting systems are particularly beneficial for projects with restricted access, meaning that cranes cannot be used or where installing a permanent overhead structure is not a feasible option. The lifting systems are used in conjunction with skid tracks to lift and skid the load.
The Allelys fleet of hydraulic lifting systems range from 100te – 900te capacity. Our latest 900te capacity system also includes a sideshift option for pinpoint accuracy.
Our systems are widely used within specialist heavy lift projects across sectors including power, industrial and automotive. They are also available to hire, providing our customers complete flexibility with their project requirements.
Take a closer look at two of our hydraulic lifting systems below.

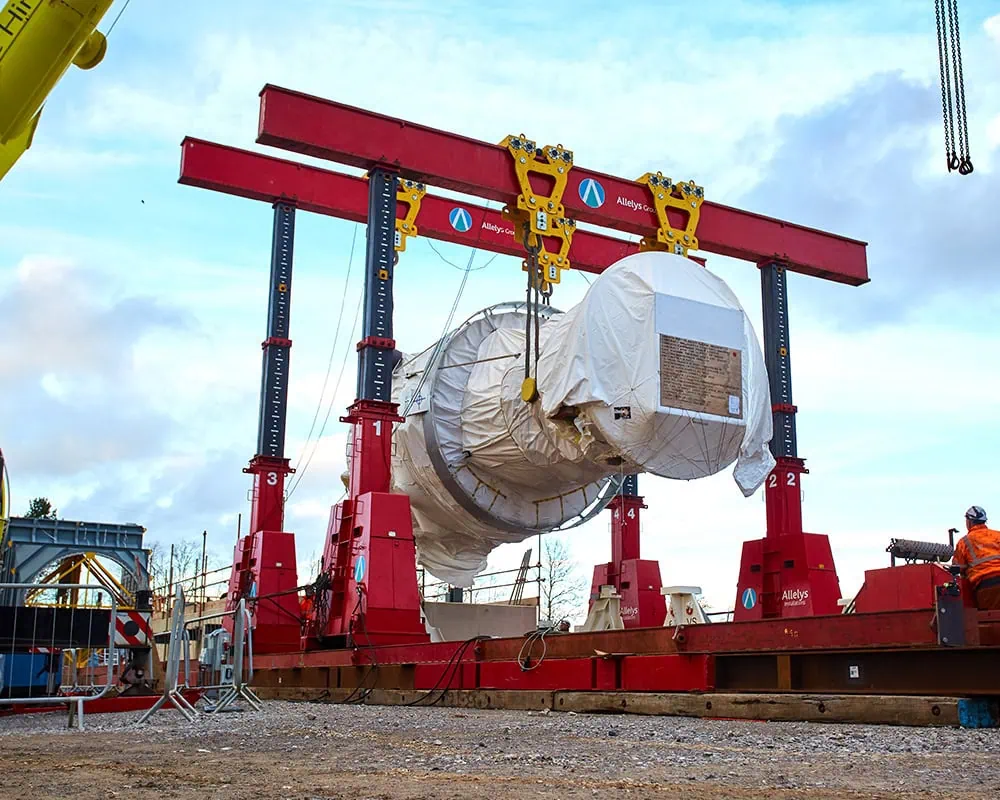

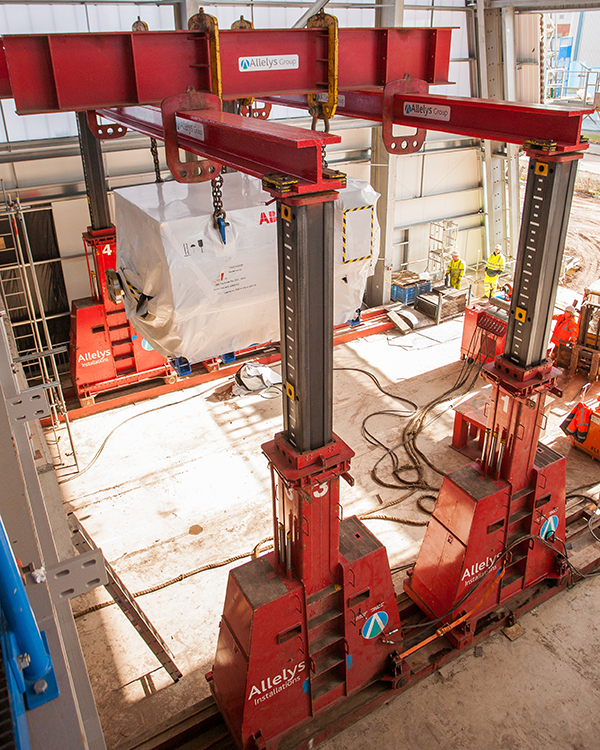

Lift n Lock (Four leg lift gantry) 200te and 450te capacity systems
∙ Independent control module
∙ Automatic cam lock system
∙ Power up and down cylinders
∙ Integral lift cylinder lock valves
∙ High-strength telescopic booms
∙ Two speed extension system
∙ Oscillating/rotating header plates
∙ Pressure compensated piston pump
∙ Continuous planetary self propel
∙ Diesel, propane or electric power
∙ Synchronized proportional control
∙ Full power manual boom sections
∙ Synchronous lifting and lowering
∙ Self-propelled wheels
∙ 4.94m of vertical stroke on 200te capacity system
∙ 6.08m of vertical stroke on 450te capacity system
∙ Maximum height 8.65m on 200te capacity system
∙ Maximum height 10.63m on 450te capacity system
∙ Variety of lift beams to suit
∙ Can be mechanically locked out
∙ Bolt on boom extensions
∙ Digital height indicator system

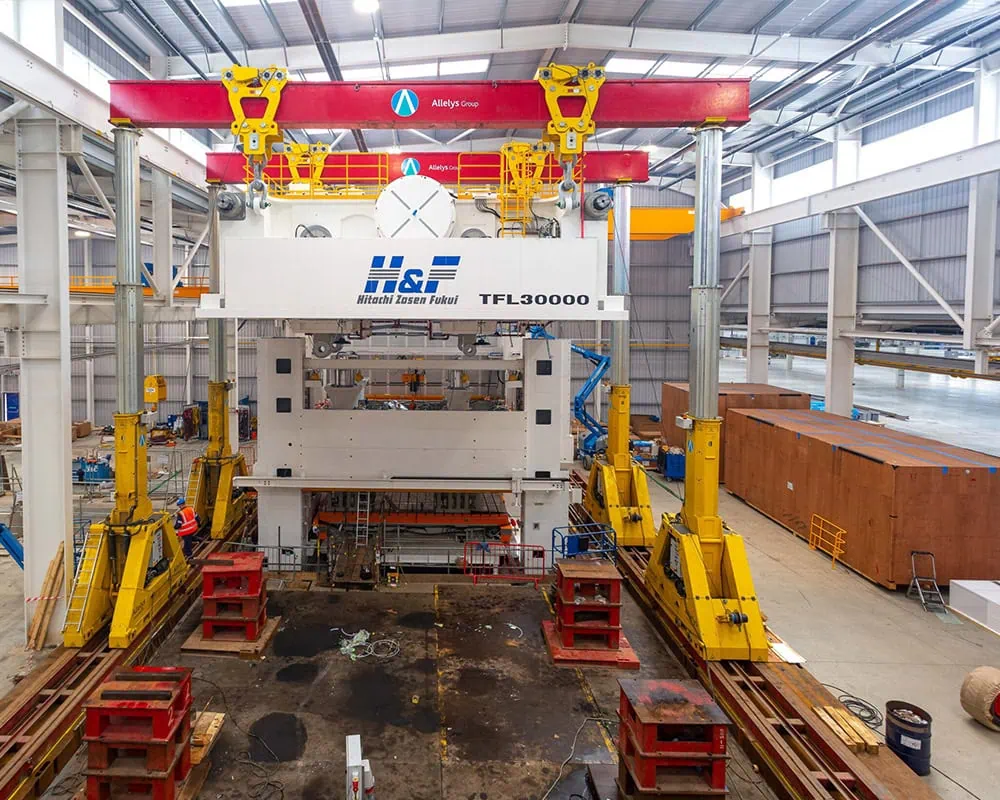

Enerpac (four leg list gantry) 900te capacity system
• Self-contained hydraulics
• Wireless Intellilift controls
• Synchronous lifting and lowering
• Self-propelled wheels
• Side shift links for precise final positioning
• Folds for easy transport
• 6.3 m of vertical stroke
• Maximum height 11.3 m
• Variety of lift beams to suit
• Can be mechanically locked out
